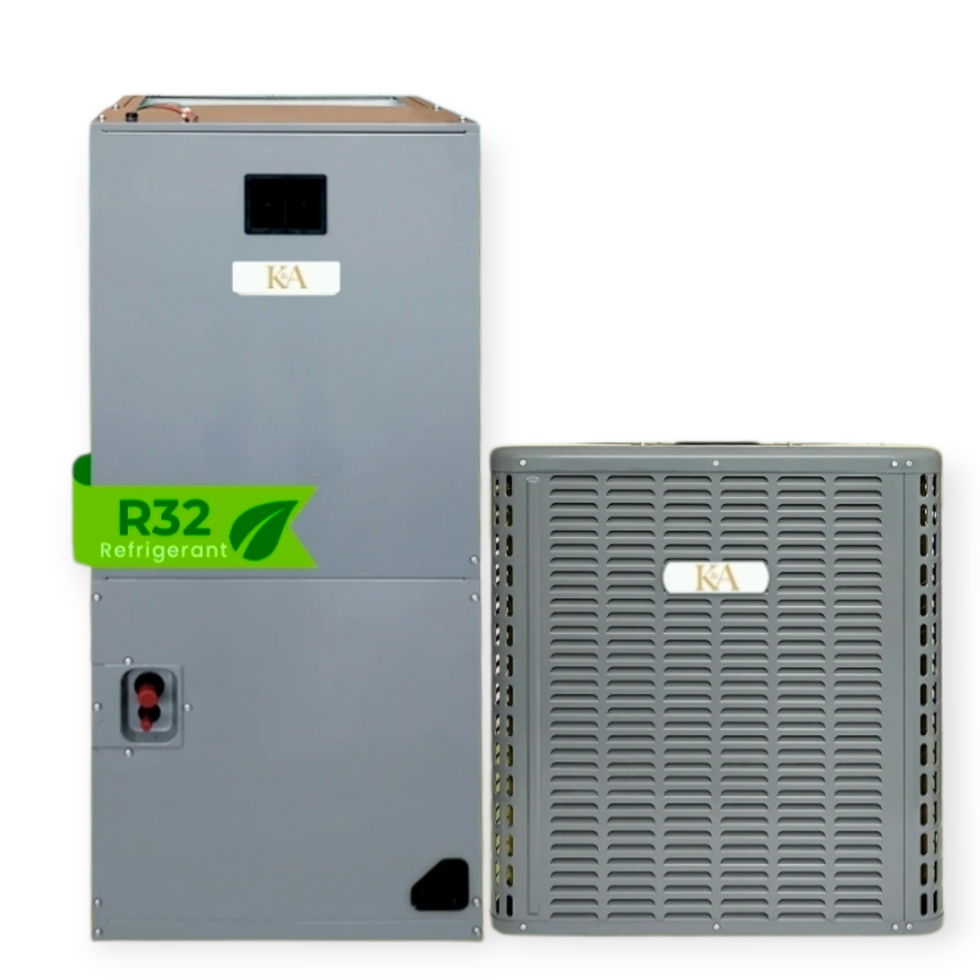

The K&A DIVINE Split System Inverter Heat Pump delivers high-performance cooling and heating with advanced technology and maximum energy efficiency. Built with environmentally friendly R32 refrigerant, this system includes both the top-discharge outdoor condenser and the variable-speed air handler, offering powerful airflow and flexible installation options.

Engineered for extreme climates, the K&A DIVINE system provides reliable operation from 6°F up to 125°F, ensuring year-round comfort with low energy consumption. Certified by ETL and AHRI, this system guarantees quality, safety, and performance that meets U.S. standards.

Perfect for residential homes, light commercial buildings, remodels, retrofits, and new installations.



#KEY FEATURES

 -Eco-Friendly R32 Refrigerant

Higher efficiency, lower environmental impact, and improved heat transfer.



-Extreme Weather Performance

Outdoor unit operates from 6°F to 125°F (cooling) and down to –13°F in heating mode.
(Outdoor unit manual: Operating temp table)


 -Variable-Speed Air Handler

Smooth airflow, quiet operation, and improved comfort.


 -4-Way Installation Options

*Vertical Upflow

•Vertical Downflow

•Horizontal Left

•Horizontal Right


 -Powerful Air Supply

Engineered for strong airflow across long duct systems.


-Wide Voltage Operation

Stable performance even with electrical fluctuations.


- Clean Air Technology

Compatible with filter upgrades, UV lamp, and ionizer options.


 -ETL & AHRI Certified

Ensures quality, safety, and verified performance.



 #TECHNICAL SPECIFICATIONS

-Efficiency

•SEER2: Up to 18

•EER2: Up to 10

•HSPF: Up to 8.5

•COP: Up to 1.8


-Operation Performance

•System Type: Heat Pump (Cooling & Heating)

•Refrigerant: R32

•Outdoor Unit: Top Discharge

•Voltage: 208/230V


 -Outdoor Operating Temperature

(Outdoor manual — page with Table 2.1)

•Cooling: 6°F – 125°F

•Heating: –13°F – 86°F


- Outdoor Unit Dimensions

(Outdoor manual — page showing Table 2.2)

•48K / 60K: 35" × 29-1/7" × 29-1/7"


-Air Handler Dimensions

(AHU manual — page with Table 2.1)

•36K: 45-3/4" height

•60K: 53-1/8" height


-Refrigerant Line Sizes

(Outdoor manual — Table 5.1)

•36K: 3/4" Suction – 3/8" Liquid

•60K: 7/8" Suction – 3/8" Liquid


 -Maximum Installation Distances

(Outdoor manual — page showing line length limits)

•Max Equivalent Line Length: 150 ft

•Max Vertical Separation: 50 ft


# WHAT’S INCLUDED

 -Outdoor Unit (Heat Pump – Top Discharge)

•High-efficiency inverter compressor

•Service valves

•R32 refrigerant pre-charged

•Corrosion-resistant cabinet

•High-power condenser fan


-Indoor Unit (Variable-Speed Air Handler)

•Full electronic control board

•Drain pan

•Multi-position installation ready

•Built-in R32 leak detection sensor

 Certifications

•ETL Listed

•AHRI Certified



-NOT INCLUDED
•Thermostat
•Refrigerant line set
•Electrical breakers / disconnect
•Installation labor
